DIY Guide

A Step-By-Step DIY Guide to Installing Your Concrete Patio

Transform your backyard into a vibrant space for outdoor activities, relaxation, and more with a concrete patio. It’s durable, weather-resistant, and easy to clean—your new stage for hosting memorable events or quiet afternoons with a good book. You can install it and succeed in this DIY project with proper guidance.

Our guide aims to empower you, no matter your experience level, to pour your concrete patio, which could save you considerable building costs. From selecting the perfect spot to pouring the concrete and letting it cure, we’ll guide you through each step.

Installing a concrete patio requires hard work, but the long-lasting rewards are worth it. Let’s unlock the secret together and roll up our sleeves. Preparation is critical to success in this exciting DIY project.

Recommended Tools for Your Project

To create a successful DIY concrete patio, you will need the following prep tools and working tools:

Hammer and Wood Saw: Useful in constructing and deconstructing the wooden formwork that will hold the wet concrete mix.
Tape and Line Level: Essential for ensuring that the concrete formwork is level and the patio dimensions are accurate.
Mason’s Line: Used for alignment purposes during the patio layout process.
Shovel and Steel Rake: Utilized for preparing the ground and spreading the concrete mix.
Plate Compactor: This tool helps compact the soil and gravel base before pouring the concrete.
Drill: Necessary for assembling the formwork and securing it in place.
Concrete Mixer: Ideal for large projects, this tool ensures that the concrete mix is thoroughly combined.
Mason’s Trowel, Concrete Groover, and Concrete Edger: These tools are needed to smooth, shape, and finish the surface of the concrete.
Wheelbarrow: Essential for transporting the concrete mix from the mixer to the patio site.

Materials:

Compactible Gravel: Acts as a stable base under the concrete slab.

Stakes: Used to secure the formwork in place.
Bagged Concrete or Ready Mix: The primary material for the patio slab. Choose a ready-mix, crack-resistant concrete product for the best results.
2×4 Lumber: Used to build the formwork where the concrete will be poured and for screeding – the process of leveling and smoothing the surface after pouring the concrete.
Grease: Applied on the inner sides of the formwork to prevent the concrete from sticking to the wood.
Deck Screws (3 1/2-inch and 2-inch): Assemble the formwork.
Plastic Sheeting: Placed over the curing concrete to slow drying and prevent cracks.

Steps for DIY Concrete Patio Installation

To embark on a concrete patio installation project, follow these comprehensive steps:

Creating a Layout and Marking Your Project Area

First, determine where you want to construct the patio and its dimensions. These decisions will affect the required concrete and the project’s complexity. Use stakes to mark the corners of the area, tying a string between them to outline your patio. A line level can help determine the slope, giving you a clear picture of how the patio will fit in your backyard. Adjust the area as needed.

Excavating and Leveling the Site

Once the layout is established, clear the area of any grass, rocks, trees, shrubs, or old concrete, exposing the bare earth. If your patio area is on a slope, you may need to add compacted fill to level it out or excavate the higher side if the ground is uneven. Remove all weeds, grass, roots, and topsoil from the designated area.

Building and Setting up the Form Boards

Prepare the wooden form boards, attaching them to the stakes with screws or unique nails for easy removal after the concrete has cured. Ensure that the forms are in good condition, set to provide the correct slope or grade for drainage, and form clean corners where they meet each other or other structures. Don’t forget to apply the grease.

Preparing and Placing the Reinforcement

Local building codes may include requirements about rebar placement or other reinforcements. Make sure to abide by these regulations to create a sturdy and long-lasting concrete patio.

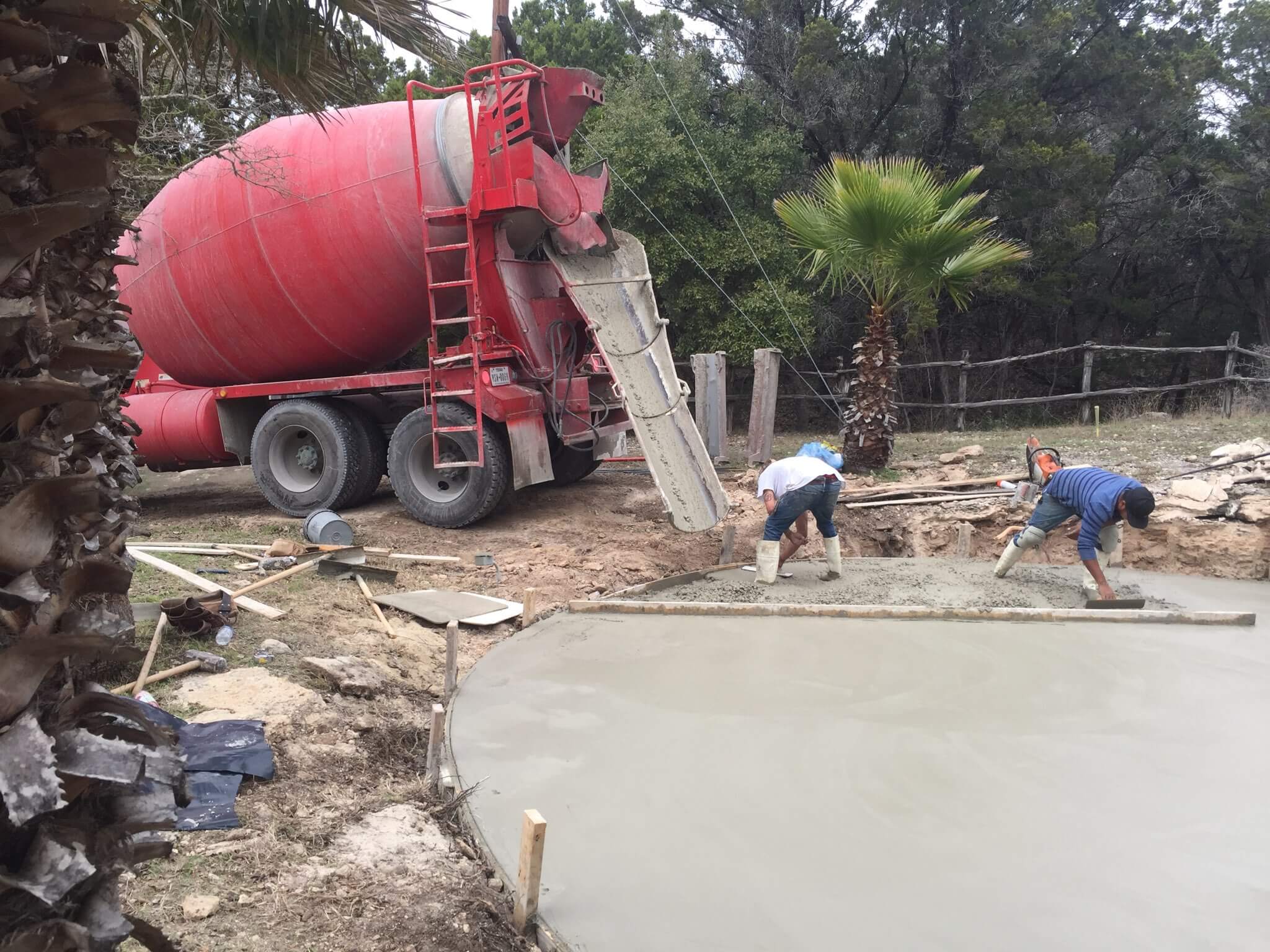

Mixing and Pouring the Concrete

If you use bagged concrete, mix it with water according to the package instructions. For large areas, consider renting a concrete mixer for easier mixing. Once your concrete is ready, transport it to the site in a wheelbarrow and pour it into your prepared formwork.

Screeding and Leveling the Concrete

After pouring the concrete, screeding is the initial process of leveling and smoothing the surface. You can do this with a long 2×4 board. Ensure that your surface is flat and smooth, as this significantly affects your patio’s final appearance and functionality.

Finishing the Concrete Surface

When the concrete begins to set, start the finishing process. Be careful not to overwork the concrete. Bringing up too much moisture can weaken the finished surface. For a non-slip surface, consider broom finishing by dragging a broom across the semi-set concrete to create small ridges.

Curing the Concrete

The final step is to let the concrete cure properly. Slowing down the curing process in very hot, dry weather is essential. Use a shade to keep the concrete out of direct sunlight, and mist the concrete with water as needed to prevent premature curing, which can weaken the finished product.

A plastic sheet can also cover the curing concrete to slow drying and prevent cracks. Concrete cures within 28 days, but you can begin using your patio within 24-48 hours after pouring, as long as you avoid heavy traffic or placing heavy objects on the surface.

Final Thoughts

A well-constructed concrete patio can transform your backyard into a durable, attractive, and long-lasting space. It enhances the aesthetic appeal of your outdoor space and is perfect for individuals willing to get their hands dirty. Don’t feel intimidated by the details and steps involved; every expert was once a beginner. Overcoming challenges is part of the process and the learning experience.

Pouring your patio can save you 40-50% compared to hiring a professional. It also provides a rewarding experience and a sense of pride. Start with a simple design and work up as your skills improve. The DIY community is supportive, so gather your tools, plan thoroughly, and savor the project.

Get ready to transform your backyard with a DIY concrete patio. Embrace the challenge with patience, preparation, and a can-do attitude. Follow through, and soon you’ll be enjoying the fruits of your labor with satisfaction. Enjoy the journey!
